01 Introduction

BlitzViwer3D combines a highly simplified Unity/Godot-style scene editor with a Lua scripting engine that replicates the classic Blitz3D API (CreateCube, PositionEntity, MoveEntity, etc.). The idea is to let you build a scene by hand with the mouse (Hierarchy + Inspector), then bring it to life with a script: move objects, detect simple collisions, have the camera follow the player, read keyboard and mouse input — all without leaving the app.

Edit mode

Create and arrange objects (cubes, spheres, or .obj models) using Hierarchy and Inspector. This layout can be saved as a scene.

Play mode

Pressing Play runs the script in the Script panel. The edit-mode scene is backed up automatically and restored when you press Stop.

02 General interface

The window is organized into dockable panels, IDE-style:

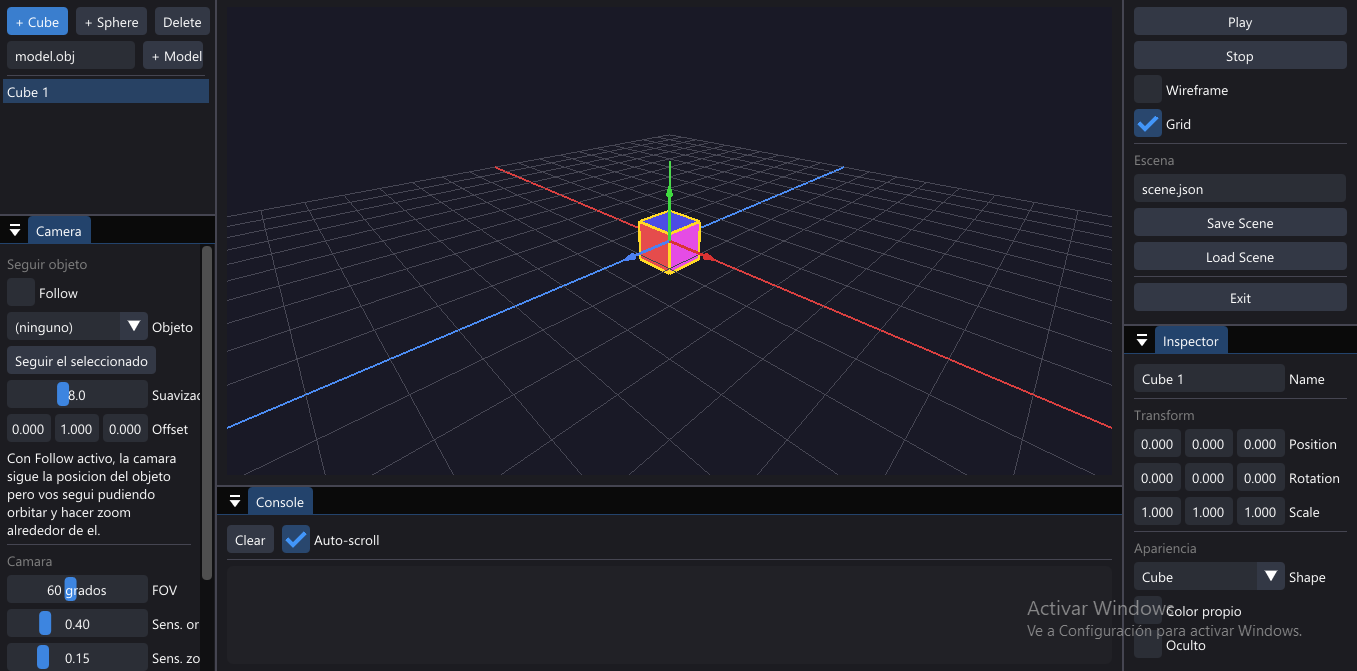

BlitzViwer3D general interface with a cube in the scene — Default layout: Hierarchy (left), 3D Viewport + Console (center), Toolbar / Camera / Inspector (right).

Main panels
Panel	Function
Hierarchy	List of objects in the scene. Create/delete cubes, spheres, and models.
Inspector	Properties of the selected object: name, transform, shape, color.
Script	Lua code editor (tab next to Render).
Render	3D viewport where you view and navigate the scene.
Console	Output of `print()`, Lua errors, and Play/Stop events.
Camera	Orbit camera settings and "Follow" mode.
Toolbar	Play / Stop, Wireframe, Grid, save/load scene, exit.

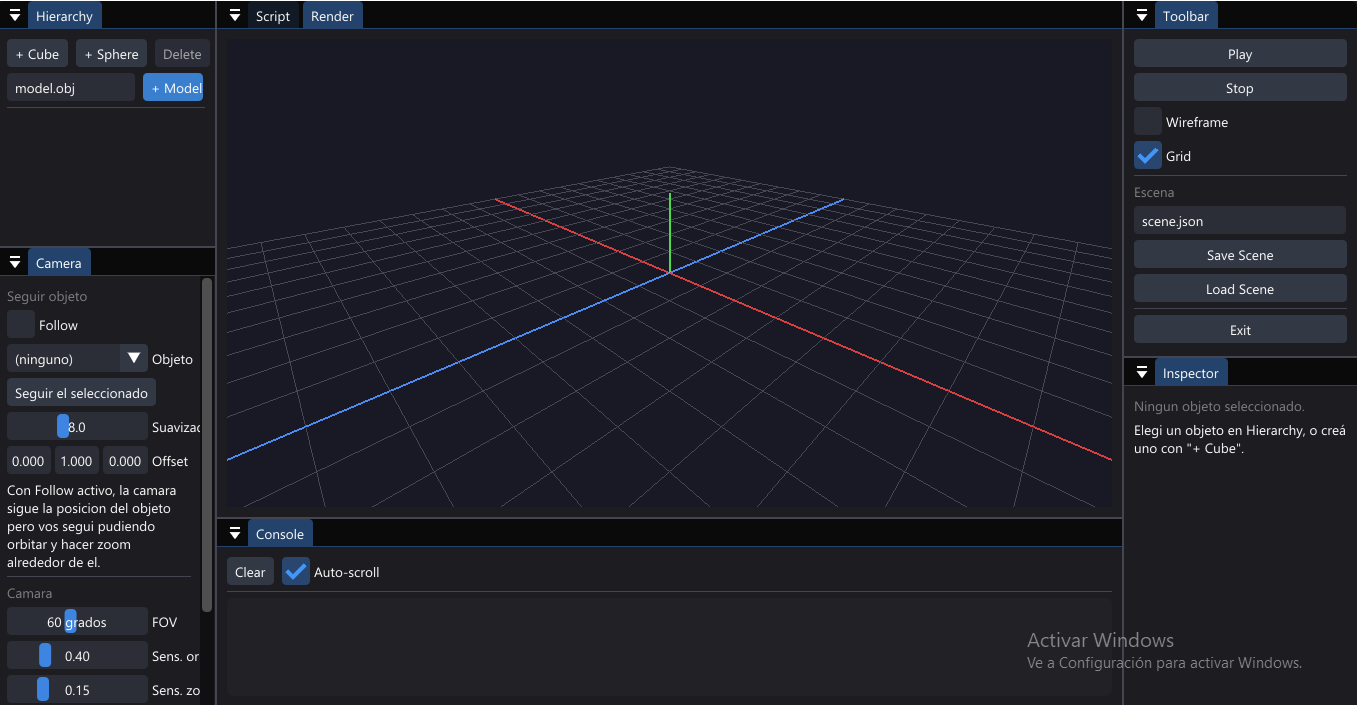

Script panel view with the Render tab empty — The center panel switches between the **Script** tab (code) and **Render** (3D view).

03 Hierarchy panel — creating objects

Hierarchy panel with + Cube, + Sphere, Delete, and + Model buttons — Object creation buttons.

+ Cube / + Sphere: create a new object at the origin and select it automatically.
Delete: deletes the selected object (only enabled when one is selected).
Text field + Model: type the path to an .obj file (e.g. model.obj) and click + Model to load it. .mtl materials are looked up in the same folder.
The list below shows all objects in the scene. Hidden objects appear dimmed with the (hidden) tag. Click to select.

04 Inspector panel — editing properties

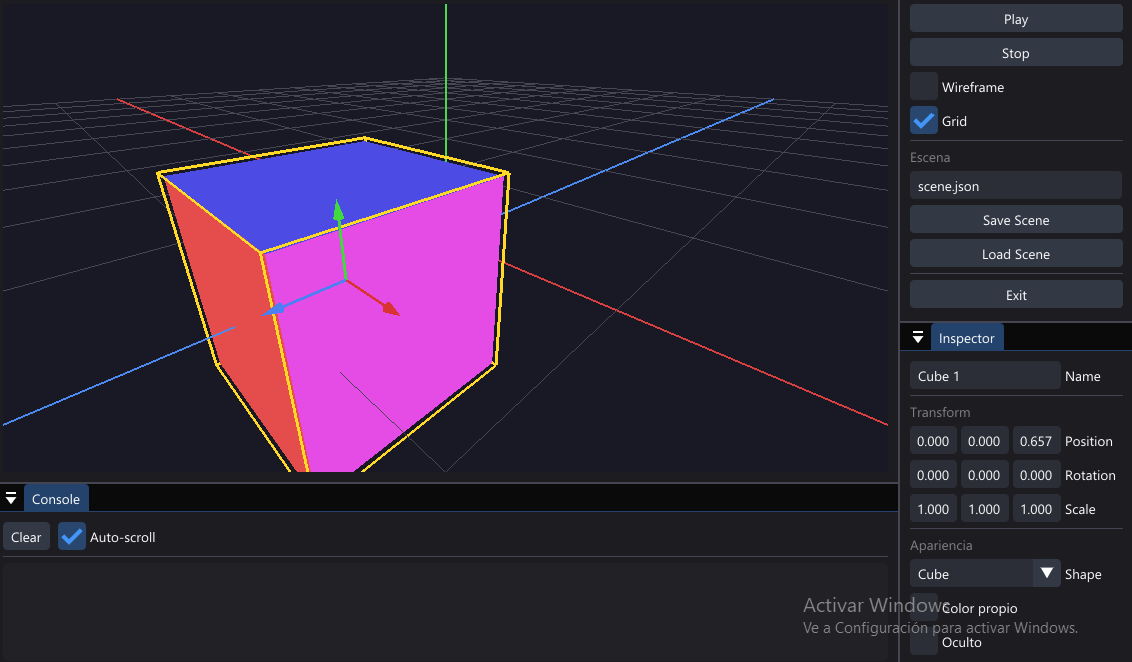

Selected object with axis gizmo and Inspector panel — Selecting an object highlights it in the viewport with its local axes.

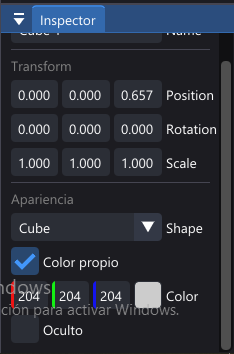

Inspector panel showing Transform and custom color — Transform (position/rotation/scale) and a custom color.

Inspector fields
Field	Description
Name	Object name. Used with `GetEntityByName` from the script.
Position / Rotation / Scale	Transform in X, Y, Z. Rotation in degrees. Drag with the mouse to change the value, or double-click to type it.
Shape	`Cube` or `Sphere`. If the object comes from an `.obj` file, this is replaced by the model path and its triangle count, with a Reload button.
Custom color	When off, the object uses the default "rainbow" color per face. When on, you can pick a solid color with the RGB selector.
Hidden	Same as `HideEntity`/`ShowEntity` from script: hides the object without deleting it.

05 Camera panel

The camera is an orbit camera (yaw / pitch / distance around a "target" point), with the option to automatically follow an object:

Control	What it does
Follow + Object	When enabled, the orbit's target point follows the chosen object's position, with configurable smoothing. You can still orbit and zoom around it.
Follow selected	Shortcut: enables Follow on the object currently selected in Hierarchy.
Smoothing	How fast the camera "catches up" to the followed object (higher = more immediate).
Offset	Offset of the follow point relative to the object (e.g. to look slightly above it).
FOV	Camera field of view, in degrees.
Orbit sens. / Zoom sens.	Mouse sensitivity when orbiting (right button) and zooming (wheel).
Invert pitch (Y)	Inverts the vertical axis while orbiting.
Min/max distance	Zoom limits.
Reset Camera	Resets all camera values to factory defaults.

06 Viewport (Render) & mouse controls

Action	Control
Orbit camera	Drag with the Right mouse button
Zoom	Mouse Wheel
Select object	Click in Hierarchy, or from the script

Toolbar	Function
Play	Backs up the scene, resets the console and the internal clock, compiles and runs the script, and calls `Start()` if it exists.
Stop	Closes the Lua state and restores the scene to how it was before Play.
Wireframe	Draws objects in wireframe mode.
Grid	Shows/hides the grid floor and reference axes.
Save Scene / Load Scene	Saves or loads the scene (objects + camera) to a JSON file, named per the text field (default `scene.json`).
Exit	Closes the application.

07 Script Editor

The Script panel is a text editor with Lua syntax highlighting. The code you write there is what runs when you press Play.

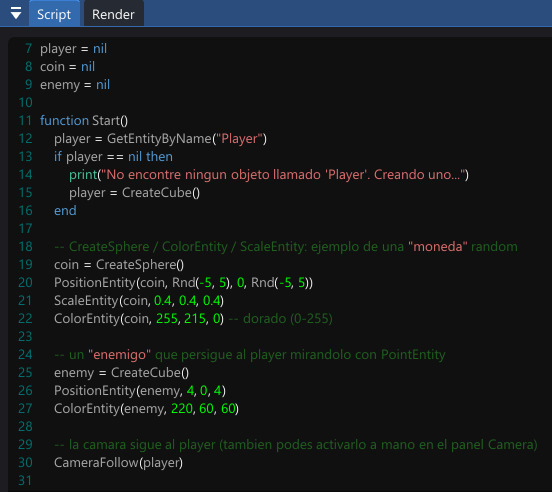

Script editor showing a Lua code example — Example: find the player by name, spawn a random "coin", and an "enemy" that follows the player with the camera.

Special functions

The script can define two global functions that the engine calls automatically:

Function	When it runs
`Start()`	Once, right after pressing Play (after the rest of the script runs).
`Update(dt)`	Once per frame while the game is running. `dt` is the time in seconds since the previous frame.

If the script has an error (syntax or runtime), the message appears in red in the Console and playback stops automatically.

Minimal example

-- Runs once at startup
function Start()
    player = CreateCube()
    ColorEntity(player, 80, 160, 255)
    PositionEntity(player, 0, 0.5, 0)
    CameraFollow(player)
end

-- Runs every frame
function Update(dt)
    local speed = 4
    if KeyDown(0x57) then MoveEntityLocal(player, 0, 0,  speed*dt) end -- W
    if KeyDown(0x53) then MoveEntityLocal(player, 0, 0, -speed*dt) end -- S
    if KeyDown(0x41) then TurnEntity(player, 0, -90*dt, 0) end -- A
    if KeyDown(0x44) then TurnEntity(player, 0,  90*dt, 0) end -- D
end

Key codes for KeyDown/KeyHit are Windows Virtual-Key Codes (e.g. 0x57 = "W", 0x20 = spacebar, 0x1B = Escape).

08 Lua API reference

All of these functions are available as globals inside the script, no need for require. "Objects" are referenced by a numeric handle (the value returned by CreateCube, CreateSphere, etc.).

Creating and querying objects

Function	Description
`CreateCube()`	Creates a cube and returns its handle.
`CreateSphere()`	Creates a sphere and returns its handle.
`LoadModel(path)`	Loads an `.obj` model (reuses the mesh if already loaded) and creates an object with it.
`GetEntityByName(name)`	Returns the handle of the first object with that name, or `nil` if none exists.
`EntityByIndex(i)`	Returns the handle at position `i` (1..CountEntities()), useful for iterating over all objects.
`CountEntities()`	Total number of objects in the scene (includes hidden/deleted ones).
`EntityExists(handle)`	Checks whether a handle is still valid, without raising an error.
`EntityName(handle)`	Returns the object's name.
`DeleteEntity(handle)`	"Soft" delete: hides the object and renames it to `(deleted)` (other objects' handles stay valid).

Transform

Function	Description
`PositionEntity(h, x, y, z)`	Sets the absolute position.
`MoveEntity(h, dx, dy, dz)`	Adds a displacement in world space.
`MoveEntityLocal(h, dx, dy, dz)`	Moves in the object's local space (based on its Y rotation): z = forward/backward, x = right/left, y = up/down.
`RotateEntity(h, rx, ry, rz)`	Sets the absolute rotation, in degrees.
`TurnEntity(h, drx, dry, drz)`	Adds rotation (degrees) to the current one.
`ScaleEntity(h, sx, sy, sz)`	Sets the scale on each axis.
`PointEntity(h, target)`	Rotates `h` on Y so its front faces `target`. Great for simple AI ("look at the player").
`EntityX/Y/Z(h)`	Return the position on each axis.
`EntityRotX/Y/Z(h)`	Return the rotation on each axis.
`EntityScaleX/Y/Z(h)`	Return the scale on each axis.
`EntityDistance(a, b)`	Euclidean distance between two objects.
`EntitiesOverlap(a, b)`	Simple axis-aligned box (AABB) collision, using scale as size.

Appearance & visibility

Function	Description
`ColorEntity(h, r, g, b)`	Solid color, values 0-255 (as in Blitz3D). Passing `(-1,-1,-1)` restores the default rainbow color.
`HideEntity(h)` / `ShowEntity(h)`	Hides or shows the object.
`EntityHidden(h)`	Returns whether it's hidden.

Camera

Function	Description
`CameraFollow(h)`	Enables camera follow on object `h` (equivalent to checking "Follow" in the Camera panel).
`CameraFollowOff()`	Disables following.
`SetCameraTarget(x, y, z)`	Manually sets the point the camera looks at / orbits around.
`SetCameraAngles(yaw, pitch)`	Sets the orbit angles (pitch is clamped to ±89°).
`SetCameraDistance(d)`	Sets the camera distance to the target (clamped to the configured min/max limits).
`CameraTargetX/Y/Z()`	Return the current target point.
`CameraYaw()` / `CameraPitch()` / `CameraDist()`	Return the current orbit values.

Input (keyboard / mouse)

Function	Description
`KeyDown(vk)`	True while the key is held down. `vk` is a Windows Virtual-Key Code.
`KeyHit(vk)`	True only on the frame the key goes from up to down.
`MouseX()` / `MouseY()`	Mouse position relative to the viewport (0,0 = top-left corner). Returns -1,-1 if the mouse is outside the viewport.
`MouseInViewport()`	True if the mouse is over the Render viewport.
`MouseDown(btn)` / `MouseHit(btn)`	Mouse button state. `btn`: 1 = left, 2 = right, 3 = middle.

Utilities

Function	Description
`GetTime()`	Seconds elapsed since Play was pressed.
`Rnd()` / `Rnd(max)` / `Rnd(min,max)`	Random floating-point number: 0..1, 0..max, or min..max.
`Rand(min, max)`	Random integer between min and max, inclusive.
`Clamp(v, min, max)`	Clamps `v` to the [min, max] range.
`print(...)`	Overrides Lua's standard `print`: output goes to the Console panel instead of a terminal.

09 Saving and loading scenes

Save Scene / Load Scene (in the Toolbar panel) persist the full edit-mode scene — every object with its transform, shape, color, and visibility, plus the camera configuration — to a JSON file (default scene.json, in the same folder as the executable).

The file name/path is edited in the text field above the buttons.
If an object is an .obj model whose file can no longer be found when reloading the scene, the engine reports it in the Console instead of failing silently.
Saving/loading a scene is independent of the script: it's the edit-mode state, not what happens during Play (which always starts fresh from Start()).

Changes a script makes at runtime (objects created with CreateCube, positions moved by Update, etc.) are not saved automatically: they're discarded when you press Stop, which restores the scene to how it was before Play.

10 Downloads

Windows desktop build, compiled in Debug mode.

BlitzViwer3D.exe

Windows 64-bit · Debug build · ~6.4 MB

Download .exe

Windows operating system (64-bit)
Graphics card with OpenGL support
No installation: portable executable
Place .obj/.mtl files next to the .exe to load them by relative path

The executable runs from the same folder where it looks for scene.json and any .obj models referenced by relative path (see the Scenes section). If you move it, bring those files along too.
